Executive Summary

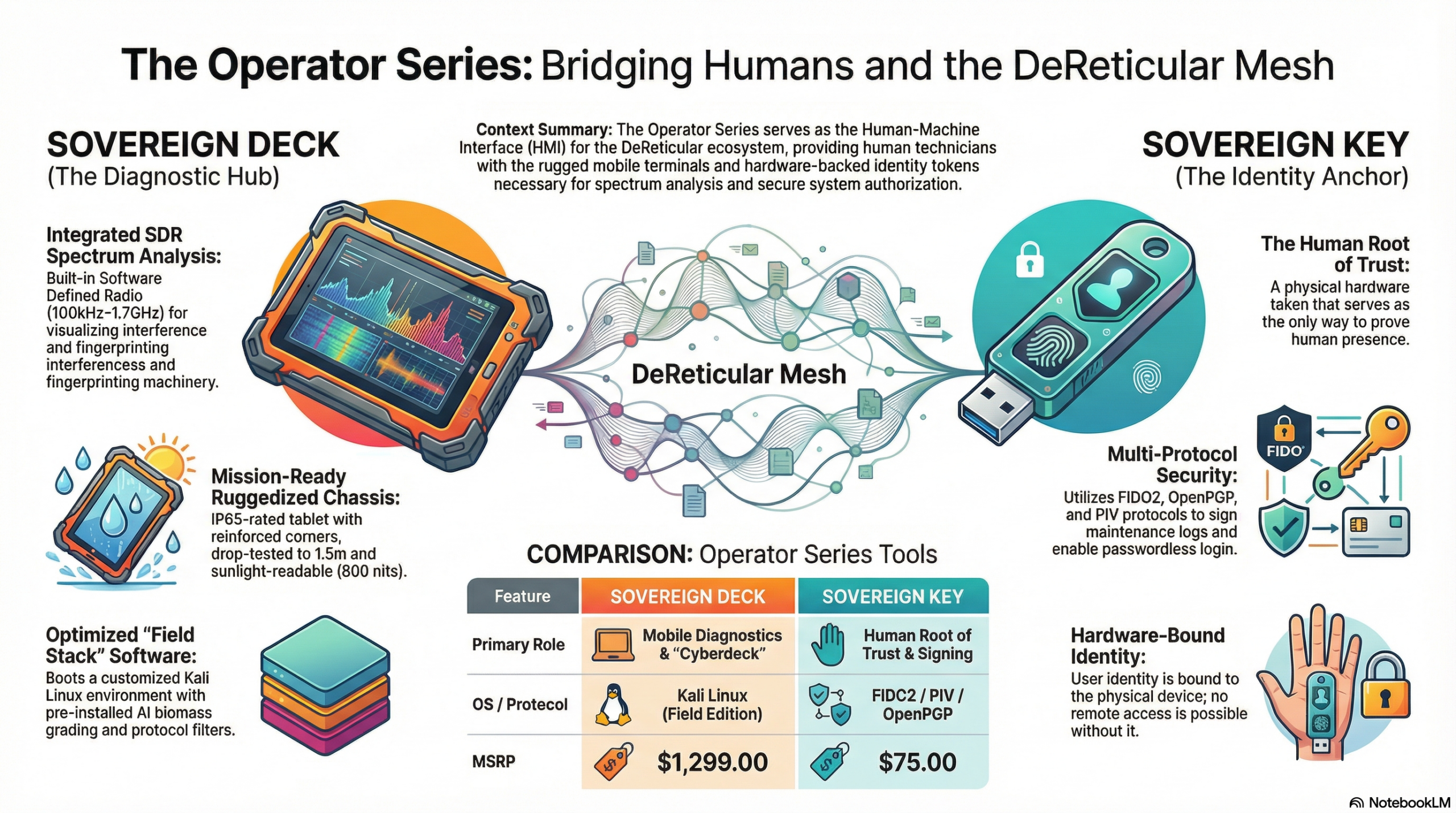

The Operator Series serves as the critical Human-Machine Interface (HMI) within the DeReticular ecosystem. While other tiers such as Nomad and Sentry function as autonomous nodes, the Operator Series provides the necessary hardware for human technicians to diagnose, repair, and authorize these systems. This series is defined by three core pillars: Rugged Mobility, Hardware-Backed Identity, and Spectrum Analysis.
The product line currently consists of two primary offerings:
- Sovereign Deck (Field Terminal): A ruggedized mobile diagnostic unit featuring integrated Software Defined Radio (SDR) for environmental and machinery “fingerprinting.”
- Sovereign Key (Auth Token): A physical hardware token that establishes a “Human Root of Trust,” ensuring that critical system actions and maintenance logs are signed by a verified biological operator.
Economically, the series maintains healthy margins, with the Sovereign Deck yielding approximately 46% and the Sovereign Key yielding approximately 33%. The operational focus remains on secure fulfillment, specialized software payloads, and hardware modifications to standard OEM platforms.
Product Comparison Matrix
| Feature | Sovereign Deck (Field Terminal) | Sovereign Key (Auth Token) |
| SKU | RIOS-OP-DECK | RIOS-KEY-01 |
| Primary Role | Mobile Diagnostics & “Cyberdeck” | Human Root of Trust & Signing |
| Hardware Core | Intel N5100 / 10.1″ Rugged Tablet | YubiKey 5C NFC (Custom) |
| OS / Protocol | Kali Linux (Field Edition) | FIDO2 / PIV / OpenPGP |
| Key Feature | Integrated SDR (100kHz–1.7GHz) | NFC + USB-C Interface |
| Connectivity | Wi-Fi 6, Bluetooth, LTE (Optional) | USB-C Physical Contact |
| MSRP | $1,299.00 | $75.00 |
| Margin | ~46% | ~33% |
Sovereign Deck (Field Terminal) Detailed Analysis
The Sovereign Deck is the primary tool for field technicians, designed to withstand harsh environments while providing deep visibility into the RF (Radio Frequency) spectrum and node telemetry.
Technical Specifications
- Chassis: IP65-rated rugged tablet with reinforced corners, drop-tested to 1.5 meters.
- Processing Power: Intel® Celeron® N5100 (Quad-Core, Fanless) with 8GB LPDDR4x RAM.
- Display: 10.1″ IPS screen (1920×1200) featuring 800 nits brightness for sunlight readability.
- The “Special Sauce”: An integrated RTL-SDR (Software Defined Radio) module connected via an internal USB header. This allows operators to visualize the RF spectrum (specifically 915MHz LoRa and 2.4GHz Wi-Fi) to identify interference or debug machinery.
- Storage & Battery: 256GB user-replaceable SSD and a 5000mAh hot-swappable battery providing over 8 hours of runtime.
Software Payload (“The Field Stack”)
The Deck runs a customized version of Kali Linux (Field Edition) with a touch-optimized XFCE environment. Pre-installed tools include:
- HempGrade AI (Mobile): An offline TensorFlow Lite model that uses the rear camera to grade biomass samples.
- SDR++: A visualizer for the internal radio receiver used to detect “rogue” nodes.
- Wireshark: Configured with specific filters for RIOS/Locutus protocol traffic.
- DeReticular Admin CLI: Enables SSH access into Nomad/Sentry nodes via USB serial tethering.
Fulfillment and SOP
The production process involves taking a Shenzhen Rugged Tablet OEM base and performing a hardware modification. This includes:
- Installing the RTL2832U module.
- Routing an SMA antenna pigtail to the top auxiliary port.
- Replacing Windows 11 IoT with the customized Kali Linux build.
- Calibrating the SDR against a known 915MHz reference signal.
——————————————————————————–
Sovereign Key (Physical Auth Token) Detailed Analysis
The Sovereign Key is the fundamental security component of the Operator Series, designed to move identity away from cloud-based passwords and into physical hardware.
The “Human Root of Trust” Philosophy
The DeReticular ecosystem operates on the principle that the Key is the only way to prove human presence.
- Passwordless Access: Sentry Nodes cannot be accessed remotely without the physical key or a registered backup.
- Identity Bound to Hardware: The operator’s “Sovereign Badge” (an NFT) is bound to the Public Key on the device. Transferring or selling the physical key effectively transfers the digital identity.
Technical Capabilities
- Hardware: Based on the YubiKey 5C NFC (Firmware 5.4+).
- Durability: IP68 water and dust resistance; crush resistant.
- Protocols:
- FIDO2/WebAuthn: For dashboard logins.
- OpenPGP: Stores a 4096-bit RSA Private Key used to sign maintenance logs on the Locutus Ledger.
- PIV: Smart card functionality for SSH login.
Fulfillment and Security
To prevent supply chain attacks, keys are shipped blank (factory default). The user must generate their own keys during a “Claiming Ceremony” using a dedicated desktop application. Physical customization is limited to a laser-etched DeReticular Octagon logo on the touch sensor surround.
Risk Register and Mitigation
| Risk ID | Description | Mitigation Strategy |
| R-DECK-01 | Software Complexity: Kali Linux may be difficult for non-technical users. | Field Mode UI: A simplified launcher menu for common tasks (Scan, Grade, Repair) that hides the command line. |
| R-KEY-01 | Loss of Identity: User loses their unique Sovereign Key. | Redundancy: Marketing encourages the purchase of a “Backup Key.” The Identity Manager allows two keys per NFT identity. |
| R-SDR-01 | Legal Compliance: RF listening may be restricted in certain jurisdictions. | Frequency Lock: Software defaults to ISM bands (915MHz/2.4GHz) and requires a liability waiver upon first boot. |
Support and Warranty Framework
- Sovereign Deck: 1-year hardware warranty covering functional defects (excludes screen damage from abuse).
- Sovereign Key: 1-year warranty. Note: Data recovery is impossible if the key is lost.
- Return Policy: 14-day standard return period, provided the Key has been wiped and reset.
